100% Polyethylene Mono-Material × Anti-Choke Safety Cap × EVOH Nutrient Shield × Hot-Fill Ready
100% Polyethylene Mono-Material × Anti-Choke Safety Cap × EVOH Nutrient Shield × Hot-Fill Ready
BY RYAN WONG, ECO PACKAGING PROTOCOLConcise B2B technical benchmarks designed to eliminate transit failures, regulatory penalties, and shelf-life loss.
Risk: Seams creep or delaminate during sterilisation and the batch is written off.
Seal strength tested after the retort cycle, not before.
Risk: Retailers now ask for a fluorine result before they will list the product.
Heavy metals and fluorine report issued with every production lot.
Risk: An oversized spout fails the age-grade safety review.
Bore dimensions and material declarations documented for your submission.
Preview your pouch in 3D WebGL Studio and export production-ready dielines.
When packaging food for babies and toddlers, compromise is not an option. Parents examine every detail—from anti-choke cap designs and BPA-free certifications to whether the pouch will end up in a landfill for 500 years.
Our Recyclable Mono-PE Baby Food Spout Pouch resolves both safety and sustainability. Built with 100% Polyethylene (pouch + spout + cap), it withstands 92°C hot-fill pasteurization, seals in organic puree vitamins with EVOH, and recycles cleanly in #4 PE streams.
Work 1-on-1 with dedicated packaging engineers to customize barrier films, optimize dieline structural integrity, and ensure zero plate fee multi-SKU printing for Recyclable Baby Food Spout.
Visualize custom artwork, test gloss vs matte finishes, and calculate dynamic dieline dimensions in real-time before production.
Inspect our precision engineered 3D renders, multi-layer lamination cross-section, and automated filling line compatibility.
Reverse-printed outer film, EVOH oxygen barrier, and high-tack inner sealant layer.
Ultrasonic heat-welded PE fitment with tamper-evident screw cap rated for 1.2m drop impact.
Up to 80 bags/min filling line speed with 100% upright retail shelf presence.
A Recyclable Mono-PE Baby Food Spout Pouch is an all-polyethylene flexible container with a pre-welded mono-PE spout fitment and ventilated anti-choke safety cap. Hot-fill compatible (up to 92°C) with an EVOH nutrient shield (<0.5 cc/m²/24hr OTR), it holds 90g–120g of baby purees and fully recycles in #4 PE store drop-off streams.
Wide-diameter ventilated cap meets ISO 8124 and CPSC infant safety guidelines.
Pouch body, spout, and cap are molded from matching PE resins, enabling 100% #4 PE recycling.
Heat-stabilized PE film withstands pasteurization without pouch warping or micro-leaks.
Equipped with a top-corner or center-mounted 8.6mm mono-PE spout, ventilated anti-choke safety cap, and vibrant food-grade matte printing.
Addressing child safety, pasteurization, and mono-material recycling
Standard narrow fitment caps present severe choking hazards if swallowed by toddlers. We fit every recyclable baby food pouch with large-diameter anti-choke safety caps featuring ventilation air slots that allow airflow even if accidentally ingested, meeting international ISO 8124 child safety standards.
Fruit and vegetable purees contain delicate vitamin C and antioxidants that degrade rapidly upon oxygen exposure. Our Mono-PE spouted pouch uses an EVOH co-extruded barrier core layer (<0.5 cc/m²/24hr OTR), preventing browning and nutrient loss without chemical preservatives.
Hot filling organic puree at 85°C–92°C causes conventional PE films to stretch and warp. We formulate an ultra-pure heat-stabilized HDPE/LLDPE mono-polyolefin structure that maintains seal integrity and spout bond strength under high pasteurization thermal cycles.
Legacy baby food pouches combine PET, aluminum foil, and PE, making them impossible to recycle in municipal streams. Our All-PE spouted pouches use 100% polyolefin resin (spout spout + cap + pouch body), certifying them 100% Recyclable in standard #4 PE drop-off programs.
Parents demand zero chemical leaching. Achieve Pack baby food spouted pouches are manufactured in ISO 22000 / BRCGS AA-rated cleanroom facilities using 100% virgin FDA 21 CFR and EU 10/2011 food-contact resins—100% free of BPA, BPS, phthalates, and heavy metals.
"Welding polyolefin spouts to multi-layer Mono-PE films without causing heat burn-through is a major engineering hurdle. During a trial for an organic apple-strawberry puree brand, we redesigned the spout base flange with a dual-radiused sealing wing. By applying ultrasonic pre-sealing at 35 kHz followed by impulse thermal sealing, we achieved zero spout leak failures across 250,000 hot-filled production units."
| Parameter | 90g (3.2 oz) Puree Pouch | 120g (4.2 oz) Standard | Reference 355ml Can |
|---|---|---|---|
| Dimensions (WxHxG) | 3.3" x 5.1" + 2.0" (85mm x 130mm + 50mm) | 3.5" x 5.9" + 2.2" (90mm x 150mm + 55mm) | 2.6" x 4.8" (66mm x 122mm) |
| Material Profile | Mono-PE / EVOH / PE (100% Recyclable #4) | Mono-PE / EVOH / PE (100% Recyclable #4) | Standard Aluminum Can |
| Total Thickness | 4.7 mil (120 microns) | 5.1 mil (130 microns) | N/A |
| Spout & Cap Material | 100% Food-Grade HDPE (Anti-Choke Ventilated) | 100% Food-Grade HDPE (Anti-Choke Ventilated) | N/A |
| Thermal Resistance | Hot-Fill up to 92°C (197°F) | Hot-Fill up to 92°C (197°F) | N/A |
| Certifications | ISO 8124 Child Safety, BRCGS, FDA 21 CFR | ISO 8124 Child Safety, BRCGS, FDA 21 CFR | Infinite Metal Recycling |
Plant-cellulose spouted bag for organic fruit smoothies.

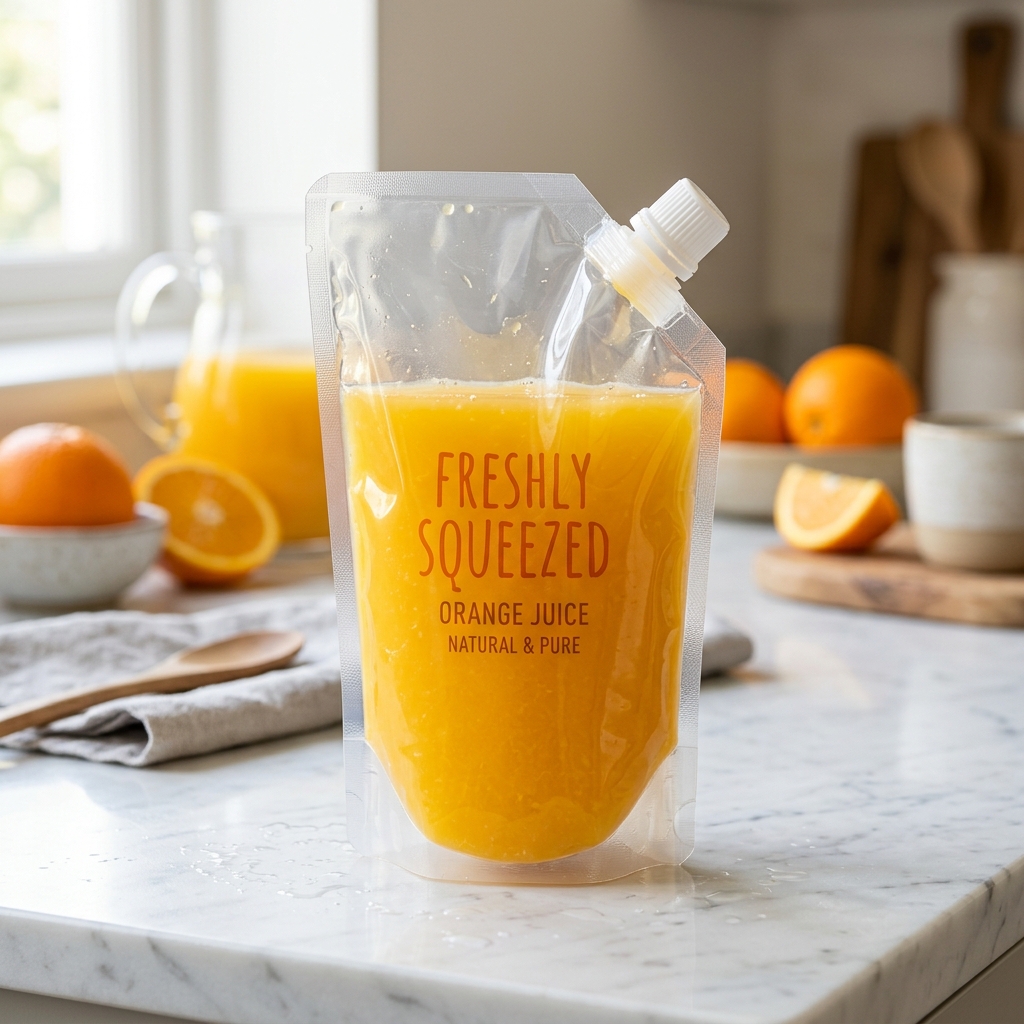

Explore Sizes →Transparent spouted pouch for cold-pressed juices and beverages.
Compare Specs →Co-Founder and Chief Packaging Engineer at Achieve Pack. Specialist in mono-material polyolefin spout welding, infant child-safety fitments, and sterile hot-fill packaging line engineering.
Test hot-fill performance, anti-choke safety caps, and mono-PE seal strength on your own filling equipment.
Liquids and purées demand high burst seals and food-grade packaging. We test spouted pouch sealing integrity under hydraulic pressure and cleanroom BRCGS standards to guarantee zero leaks and zero chemical residues.
ASTM tested barrier to block oxygen and moisture, preventing product spoilage.
Ensures absolutely zero chemical residue, mandatory for baby foods and sauces.
Internal pressure test to verify sealing seams can survive hydraulic drops.
Ensures plastic spout assembly is fused seamlessly with the laminated film.
Blocks physical tears or micro-leaks caused by transit compression.
Produced under medical-grade cleanliness, ensuring zero airborne contaminants.
See how upgrading from generic commoditized bags to precision-engineered flexible barrier packaging eliminates transport failures and boosts shelf authority.
Standard stock bags fail under transit stress and expose sensitive goods to moisture, UV light, and oxygen.
Custom engineered multi-layer pouch structure tailored to your exact moisture barrier, seal strength, and aesthetic requirements.
At Achieve Pack, sustainable packaging isn't just about printing; it's about hands-on material science. This article has been written and verified by Ryan Wong, a packaging specialist with 14+ years of experience engineering biopolymer stacks for DTC startups and Fortune 500 companies.
All research, material barrier specifications (OTR, WVTR), heat-seal values (N/15mm), and compostability timelines cited in our guides are backed by testing inside the Achieve Pack Materials Testing Lab. We cross-reference our data with official certification registries from BPI (Biodegradable Products Institute), TÜV Austria (OK Compost HOME), and FSC (Forest Stewardship Council).
Supply Chain Director
B.Eng honors degree graduate from Hong Kong Polytechnic University. Serving brands in 8 countries.
View Expert Profile →Contact our packaging experts for a free consultation and quote.
Engineered using Mono-PE or Mono-PP structures to enable simple, circular sorting and recycling. Combined with specialized high-barrier coatings to preserve freshness without compromising recyclability.
