100% Mono-Material Polyethylene × High-Barrier EVOH Core × Surfactant Resistant × Recyclable Spout
100% Mono-Material Polyethylene × High-Barrier EVOH Core × Surfactant Resistant × Recyclable Spout
BY RYAN WONG, ECO PACKAGING PROTOCOLConcise B2B technical benchmarks designed to eliminate transit failures, regulatory penalties, and shelf-life loss.
Risk: The laminate looks right on paper and fails on your actual product, wasting the run.
You run your own fill and shelf-life test before any tooling is cut.
Risk: You approve a film without knowing its oxygen or moisture transmission rate, then find out on shelf.
The barrier figure is on the quote, not buried in a datasheet you never see.
Risk: An unsubstantiated compostable or recycled claim fails retailer and marketplace review.
TÜV OK Compost HOME, BPI, EN 13432, AS 5810, GRS — referenced by certificate number.
Preview your pouch in 3D WebGL Studio and export production-ready dielines.
Shipping heavy 64 oz liquid laundry detergent in rigid plastic jugs wastes thousands in empty-container freight while generating massive plastic landfill footprint. Transitioning to flexible pouches often fails when harsh surfactants degrade film layers or puncture bottom gussets during drop transport.

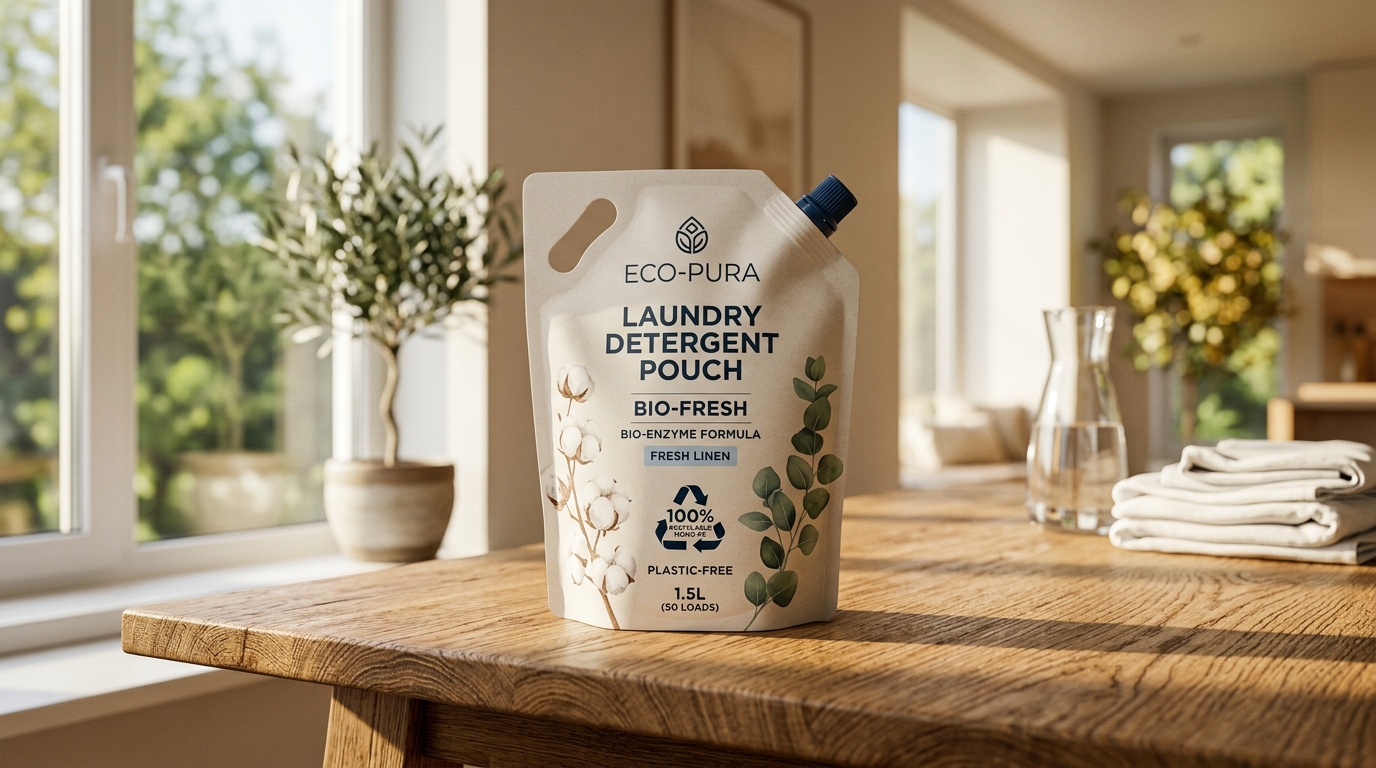

Our Mono-PE Laundry Detergent Pouch solves both chemical degradation and recycling compliance. Engineered with co-extruded LLDPE elastomeric resins and an alkali-resistant EVOH core, it replaces heavy rigid jugs with a 100% Recyclable #4 PE pouch that survives 1.2-meter drop tests with zero leaks.
Work 1-on-1 with dedicated packaging engineers to customize barrier films, optimize dieline structural integrity, and ensure zero plate fee multi-SKU printing for Laundry Detergent Pouch.
Visualize custom artwork, test gloss vs matte finishes, and calculate dynamic dieline dimensions in real-time before production.
Inspect our precision engineered 3D renders, multi-layer lamination cross-section, and automated filling line compatibility.
Reverse-printed outer film, EVOH oxygen barrier, and high-tack inner sealant layer.
Ultrasonic heat-welded PE fitment with tamper-evident screw cap rated for 1.2m drop impact.
Up to 80 bags/min filling line speed with 100% upright retail shelf presence.
A Mono-PE Laundry Detergent Pouch is an eco-engineered flexible refill package constructed entirely from Polyethylene (>95% total mass). Fortified with an alkali-resistant EVOH oxygen/moisture barrier (<0.4 g/m²/24hr WVTR) and fitted with a 100% PE pour spout or child-resistant zipper, it safely holds 64 oz (1.89L) liquid detergent or pods, cuts plastic packaging weight by 75%, and fully recycles in curbside/store drop-off #4 PE streams.
Pure polyolefin design with matching PE spout. Fully compliant with RecyClass & APR #4 recycling protocols.
Solventless lamination prevents layer peeling, chemical swelling, and seal breakdown under heavy surfactant exposure.
Ships flat to filling plants, fitting 30,000 units per pallet versus 2,500 rigid HDPE jugs.
Equipped with a heavy-duty 22mm Corner Mono-PE Pour Spout, ergonomic die-cut carrying handle, and high-clarity surface printing. Designed to replace rigid plastic jugs for eco-conscious laundry, dishwashing, and home cleaning brands.
How our polyolefin engineering resolves heavy liquid refill challenges
Concentrated liquid laundry detergents contain heavy anionic surfactants and high pH builder salts that aggressive attack standard polyurethane adhesive bonds in conventional laminated films. We co-extrude a multi-layer Mono-PE matrix with solventless high-tack resin layers, ensuring zero delamination or chemical degradation over a 24-month shelf life.
Liquid laundry refills weighing 64 oz (1.89L) exert massive kinetic pressure on bottom gusset heat seals during 1.2-meter drop tests. By utilizing sub-zero cold-toughened LLDPE elastomeric resins, our pouches absorb shock energy and achieve 3x the tear propagation strength of rigid plastic bottles while using 75% less plastic by weight.
Legacy spout pouches mix PET film bodies with rigid polypropylene (PP) caps, forcing recycling facilities to send them to landfills. Our engineering team developed a 100% Mono-PE 22mm pour spout and tamper-evident screw cap that melt down seamlessly in standard #4 HDPE/LDPE recycling streams without chemical contamination.
Detergent pods dissolve instantly when exposed to ambient humidity (>60% RH). Our Mono-PE Pod Pouches feature a continuous EVOH moisture barrier (WVTR <0.4 g/m²/24hr) combined with an ASTM D3475 certified Child-Resistant Press-to-Close zipper, keeping pods bone-dry while protecting young children.
Rigid HDPE detergent jugs require high freight volume, transporting 90% air before filling. Our flat-ship Mono-PE spout pouches fit 30,000 units per pallet compared to 2,500 rigid jugs, slashing inbound logistics freight emissions by 88% while offering digital print MOQs starting at just 500 units on Pouch Eco.
"When stress-testing 64 oz detergent pouches filled with concentrated non-ionic surfactants, standard PE/PET laminations suffered delamination at the seal throat within 14 days due to chemical permeation. We adjusted our extrusion process to blend a 15% MLLDPE (Metallocene Linear Low-Density Polyethylene) resin tie-layer with high-density HDPE outer skins. The resulting film sustained 1.5-meter drop tests onto concrete at 4°C with zero micro-cracks or seal degradation."
| Parameter | 64 oz (1.89L) Liquid Refill | 2kg Detergent Pod Pouch | Reference 355ml Can |
|---|---|---|---|
| Dimensions (WxHxG) | 7.9" x 11.8" + 3.9" (200mm x 300mm + 100mm) | 8.7" x 12.6" + 4.3" (220mm x 320mm + 110mm) | 2.6" x 4.8" (66mm x 122mm) |
| Material Composition | HDPE Outer / EVOH Core / LLDPE Sealant (>95% PE) | Mono-PE Matrix / High-Barrier EVOH Layer | Standard Aluminum Can |
| Total Thickness | 6.0 mil (150 microns) | 5.0 mil (125 microns) | N/A |
| Moisture Barrier (WVTR) | <0.4 g/m²/24hr @ 38°C 90% RH | <0.4 g/m²/24hr @ 38°C 90% RH | 0.0 g/m²/24hr |
| Closure System | 22mm Mono-PE Spout & Tamper Cap | Child-Resistant Push-Tab Zipper | Pull-Tab Top |
| Recyclability Stream | 100% Store Drop-off & Curbside #4 PE | 100% Store Drop-off & Curbside #4 PE | Infinite Metal Recycling |
Recyclable mono-material PE pouch with 22mm pour spout for liquid refills.
Request Sample →Certified child-safe push-tab zipper pouch with zero moisture clumping.
Explore Sizes →Mono-PE stand-up spout pouch for body wash and hand soap refills.
Compare Specs →Co-Founder and Chief Packaging Engineer at Achieve Pack. Expert in mono-material polyolefin co-extrusion, liquid spout sealed pouch performance, and chemical surfactant barrier formulation for consumer brands.
Test spout integrity, liquid drop strength, and child-resistant zippers on your own liquid filling line before placing a commercial order.
Single-polymer bags must match the physical performance of multi-layer co-extrusions. We test MDO-PE orientation, EVOH content, and sliding friction to enable flawless high-speed packaging runs and curbside recycling.
Maintains high barrier performance while meeting circular economy recycling rules.
Mechanical tensile strength ensures bag retains structural form under stress.
Enables hermetic seals without melting or shrinking the mono-PE outer layers.
Certified sorting compatibility in standard municipal recycling streams.
Prevents bag tears and punctures from dry pet kibbles or sharp snacks.
Ensures film glides smoothly over packaging machinery forming collars without jamming.
See how upgrading from generic commoditized bags to precision-engineered flexible barrier packaging eliminates transport failures and boosts shelf authority.
Standard stock bags fail under transit stress and expose sensitive goods to moisture, UV light, and oxygen.
Custom engineered multi-layer pouch structure tailored to your exact moisture barrier, seal strength, and aesthetic requirements.
At Achieve Pack, sustainable packaging isn't just about printing; it's about hands-on material science. This article has been written and verified by Ryan Wong, a packaging specialist with 14+ years of experience engineering biopolymer stacks for DTC startups and Fortune 500 companies.
All research, material barrier specifications (OTR, WVTR), heat-seal values (N/15mm), and compostability timelines cited in our guides are backed by testing inside the Achieve Pack Materials Testing Lab. We cross-reference our data with official certification registries from BPI (Biodegradable Products Institute), TÜV Austria (OK Compost HOME), and FSC (Forest Stewardship Council).
